$459.95
$551.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

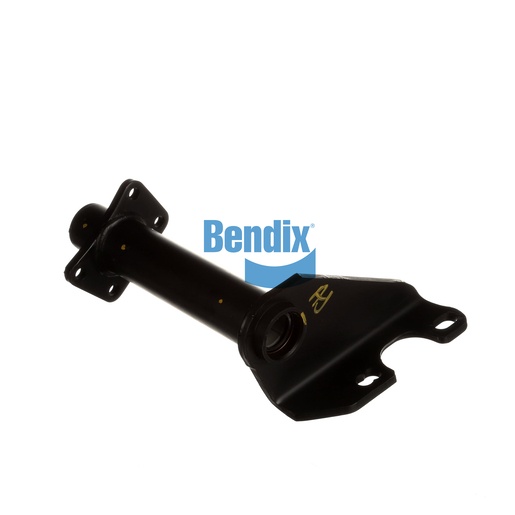

The Bendix Bracket Assembly is expertly crafted to provide robust support for foundation drum brakes, featuring a single gusset and a full arm style. This assembly is designed with a 40° gusset angle, allowing it to handle the stresses of heavy-duty braking applications. The use of nylon bushings enhances its durability, while the camshaft bracket angle of 54° clockwise ensures precise alignment for optimal braking efficiency. With a centerline length of 14.31 inches, this bracket is adaptable to a variety of configurations, making it an essential component for maintaining your braking system's integrity. Investing in high-quality components like this bracket assembly translates to enhanced vehicle performance and safety. Source One Parts Center is the best choice for acquiring genuine Bendix OEM parts, providing assurance in quality and performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
54° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.77 lb
