$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

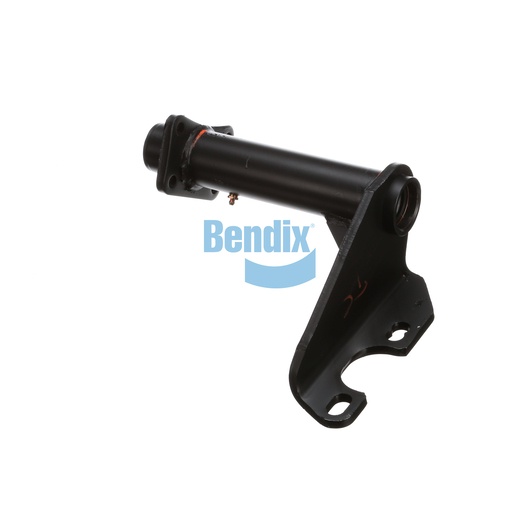

The Bendix Bracket Assembly is expertly crafted to support drum brake systems in commercial vehicles, ensuring reliability and performance in demanding applications. With a full arm style and durable nylon bushings, this assembly provides excellent stability and alignment. Its specifications include a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 54° counterclockwise, facilitating precise braking action. This essential component is vital for maintaining the safety and effectiveness of your vehicle's braking system. For high-quality Bendix OEM parts, trust Source One Parts Center to provide the best components for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
54° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.5 lb
