K082935

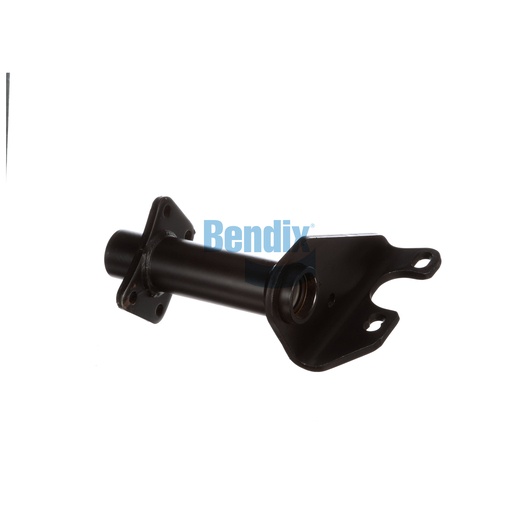

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an indispensable part of your truck's drum brake system, designed to provide robust support and enhance braking efficiency. This assembly features a single gusset and a full arm style, ensuring optimal strength and durability for heavy-duty applications. Equipped with high-quality nylon and bronze bushings, this bracket assembly offers excellent resistance to wear, allowing for smoother operation and reduced maintenance needs. With a camshaft bracket angle of 55° CW and a centerline-to-centerline length of 11.56 inches, it is engineered for a precise fit that ensures seamless integration into your braking system. This part is essential for maintaining the overall performance and safety of your vehicle. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center excels in providing high-quality components that you can trust for your commercial trucking needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
