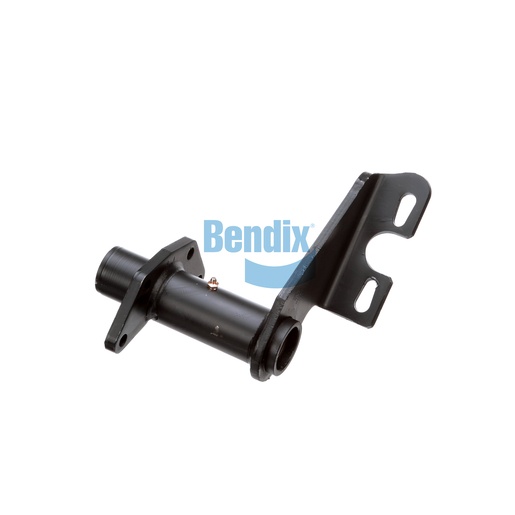

K082933
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a key component of the foundation drum brake system, meticulously designed to enhance the performance and reliability of your vehicle's braking system. Featuring durable nylon bushings and a thoughtfully engineered camshaft bracket angle, this assembly ensures a secure fit that can withstand the demands of heavy-duty use. Its precision alignment capabilities are crucial for optimal brake operation, contributing to the overall safety of your commercial vehicle. When you need genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and customer satisfaction are our top priorities.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Camshaft Bracket Angle
324° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.93 lb
