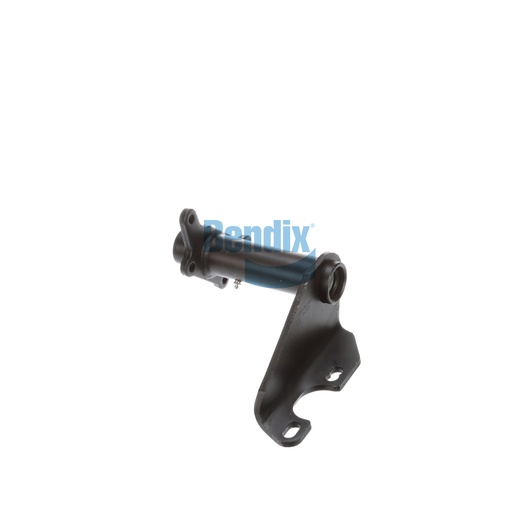

K082930
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a vital part for ensuring the stability and performance of your truck's braking system. This assembly features a full-arm design with durable nylon and bronze bushings, providing optimal support and longevity. With a slack length range of 5.50 to 6.00 inches and a camshaft bracket angle of 45° counterclockwise, it allows for precise installation and alignment. Weighing 6.0 kg (13.15 lb), this assembly is robust yet lightweight, making it perfect for heavy-duty applications. For those looking to maintain their vehicles with high-quality parts, Source One Parts Center is your go-to source for genuine Bendix OEM components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Camshaft Bracket Angle
45° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
13.15 lb
