K082929

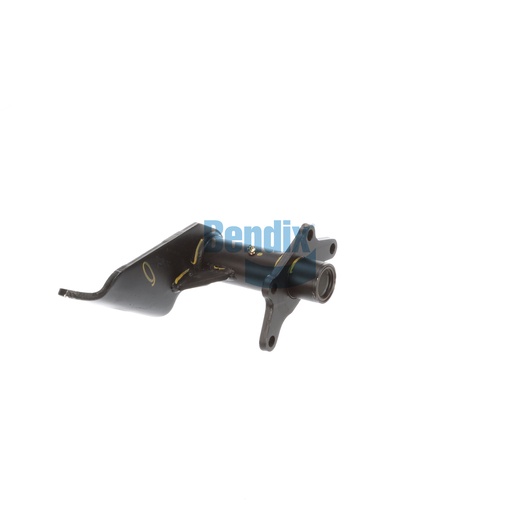

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed for foundation drum brakes, providing robust support and stability. Its single gusset and scalloped arm style enhance its durability and performance under varying loads. Featuring high-quality nylon bushings and a slack length of 5.50 inches, this assembly ensures smooth operation and long-lasting wear. The 325° CW camshaft bracket angle allows for a versatile fit, making it suitable for various applications. This assembly not only improves the efficiency of your braking system but also enhances the overall safety of your commercial vehicle. Source One Parts Center is the ideal choice for purchasing genuine Bendix OEM parts, ensuring you receive reliable components that meet the highest standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
325° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.62 lb
