K082928
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

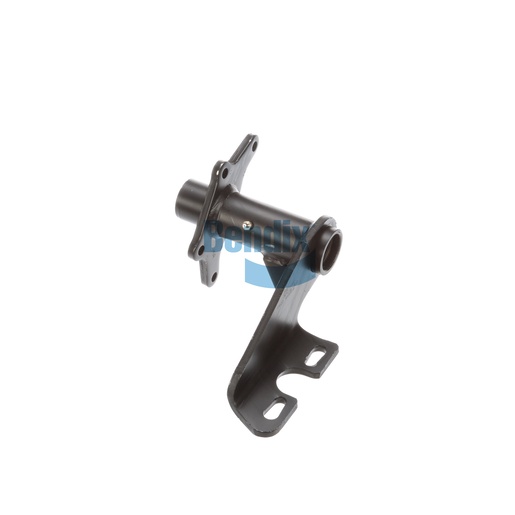

The Bendix Bracket Assembly is specifically designed for the foundation drum brake systems in commercial vehicles, providing essential support and stability. Engineered with a scalloped arm style, it combines strength and durability to handle the demands of heavy-duty applications. This assembly features nylon bushings that reduce friction and enhance the longevity of the component, ensuring optimal performance over time. With a slack length range of 5.50 inches and a camshaft bracket angle of 325° counterclockwise, it is designed for precise alignment during installation. Weighing 5.2 kg, it balances robust construction with manageable weight for ease of handling. For anyone in need of high-quality brake parts, Source One Parts Center is the best place to find genuine Bendix OEM components, ensuring superior quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
325° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.4 lb
