$249.95
$299.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

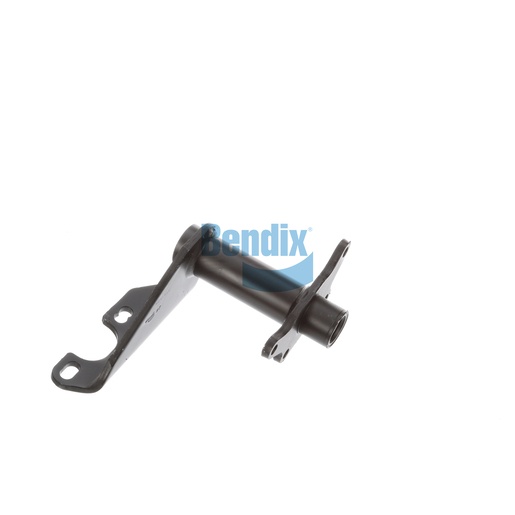

The Bendix Bracket Assembly is a crucial component designed to enhance the functionality and safety of your vehicle's braking system. Featuring a full arm style and made with durable nylon bushings, this assembly provides the necessary support and stability required for effective brake operation. The innovative design includes a camshaft bracket angle that ensures precise alignment, critical for optimal braking performance. Lightweight yet strong, this bracket is ideal for heavy-duty applications where reliability is paramount. When you need genuine Bendix OEM parts, look no further than Source One Parts Center, the trusted source for quality truck parts.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
102° CW
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.5 lb
