K082926

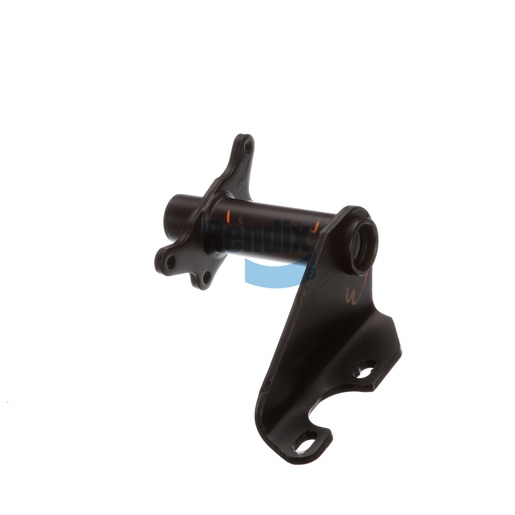

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an indispensable part of your commercial vehicle’s foundation drum brake system, offering a perfect blend of strength and precision. With a full arm style and nylon bushings, this assembly is designed for durability, ensuring that it can endure the heavy demands of commercial use. The camshaft bracket angle of 102° CCW and a centerline length of 11.56 inches create a reliable fit that enhances the performance of your braking system. This bracket not only supports the air chamber and camshaft but also contributes to the overall stability of the braking mechanism, ensuring safety for your fleet on the road. Its engineering is focused on longevity and resilience, making it a smart investment for fleet operators seeking to reduce maintenance and downtime. When you're in search of genuine Bendix OEM parts, look no further than Source One Parts Center, the premier destination for quality truck components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
102° CCW
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.61 lb
