$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

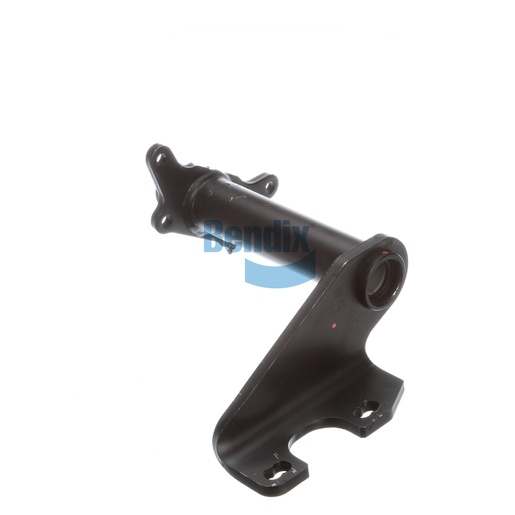

The Bracket Assembly from Bendix is engineered to provide robust support for your truck’s braking system. This high-quality assembly features a scalloped arm style, ensuring optimal performance and longevity. With nylon bushings that minimize wear and facilitate smooth operation, it is designed to withstand the extreme conditions of commercial use. The adjustable slack length and camshaft bracket angle allow for precise installation, making it a crucial component for fleet maintenance or individual repairs. When it comes to sourcing genuine Bendix parts, Source One Parts Center is your trusted partner, offering authentic components that meet the highest industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.688 IN
Length (Centerline to Centerline) [IN]
15.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
15.3 lb
