K082919

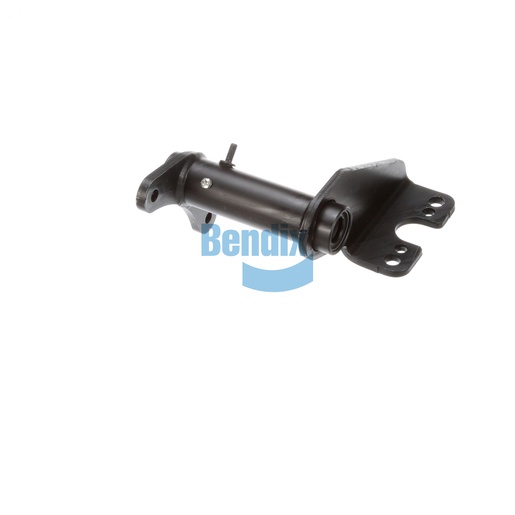

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component designed to ensure the optimal functioning of drum brake systems in commercial vehicles. Constructed with durable materials, including nylon bushings and a scalloped arm style, this assembly provides dependable support for both air chambers and camshafts. With a slack length of 5.50 inches and a camshaft bracket angle of 316° clockwise, it facilitates precise movements and efficient braking action. Its robust design ensures a secure fit and alignment, contributing to the overall safety and performance of your vehicle's braking system. Ideal for heavy-duty applications, this bracket assembly can withstand the demands of rigorous driving conditions, making it a reliable choice for fleet operators. Trust Source One Parts Center to provide you with genuine Bendix OEM parts, ensuring you receive high-quality components that meet stringent industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length (Centerline to Centerline) [IN]
10.71
Camshaft Bracket Angle
316° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.86 lb
