K082901

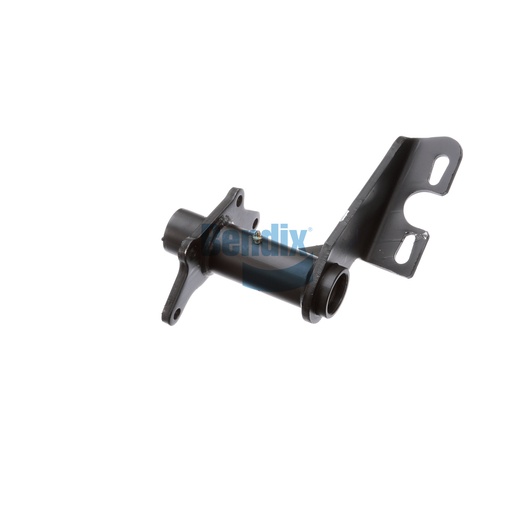

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix's Bracket Assembly is a fundamental component in your vehicle's braking system, designed to provide essential support to the air chamber and camshaft. With its scalloped arm style and durable nylon bushings, this assembly offers enhanced stability and performance. The accurate camshaft bracket angle of 308° CW and slack length of 5.50 inches ensure precision fitment and operation. Weighing just 5.2 kg (11.37 lb), it is optimized for easy installation and maintenance, making it a practical choice for fleet managers. By utilizing this quality bracket, you can ensure your braking system operates at peak efficiency. For genuine Bendix OEM parts, Source One Parts Center is your best choice, offering reliable products for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
308° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.37 lb
