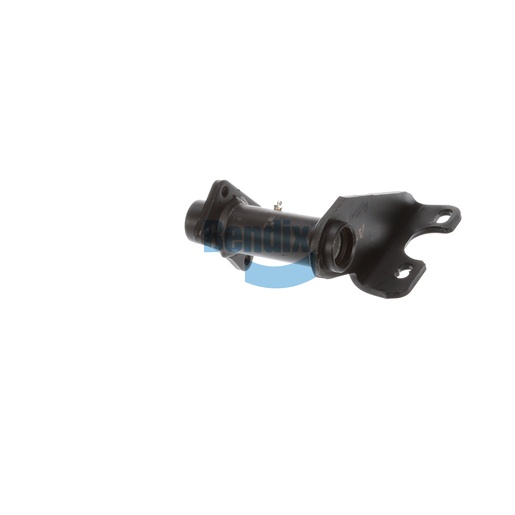

K082899
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a key component in your vehicle's foundation drum brake system, engineered for optimal performance and longevity. This assembly, crafted in the USA, features a scalloped arm style that enhances its structural integrity, while the nylon and bronze bushings provide smooth operation and reduce wear over time. With a camshaft bracket angle of 325° CW and a centerline-to-centerline length of 10.56 inches, this assembly is designed for versatility across various applications. Its robust construction ensures it can handle the demands of heavy-duty use, making it a reliable choice for commercial vehicles. For the best in genuine Bendix OEM parts, Source One Parts Center is your trusted source, providing quality products and exceptional service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
325° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.05 lb
