K082898

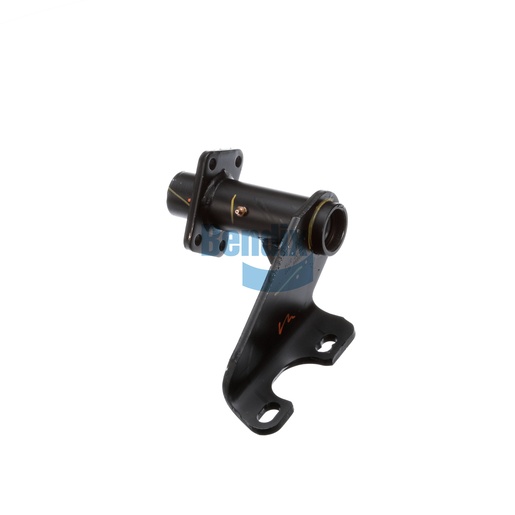

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a vital component for commercial vehicles, specifically designed to support air chambers and camshafts while ensuring optimal braking performance. With a scalloped arm style and a camshaft bracket angle of 325° CCW, this assembly provides reliable stability and alignment. Constructed from durable materials, it features nylon bushings that minimize friction, thus enhancing the longevity of both the bracket and associated brake components. This assembly is easy to install and integrates well into existing systems, making it an ideal choice for fleet maintenance. For those looking for genuine Bendix OEM parts, Source One Parts Center is the best choice, offering a comprehensive selection of high-quality components for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
325° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.05 lb
