K082897

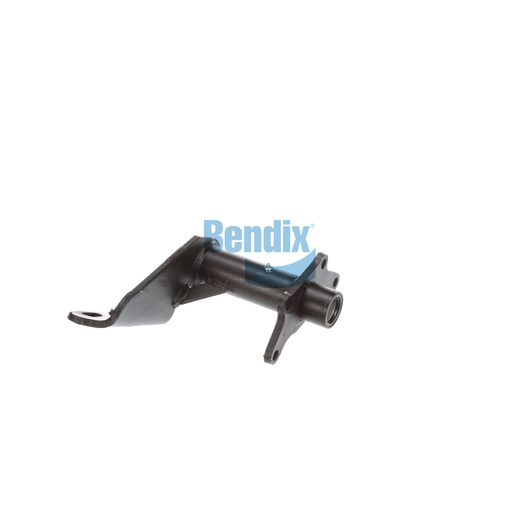

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is crucial for maintaining the effectiveness of your truck's braking system. With its scalloped arm style and nylon bushings, this assembly offers enhanced support and durability. Designed with a slack length of 5.50 inches and a camshaft bracket angle of 308° clockwise, it ensures optimal alignment and function. Weighing 5.3 kg (11.77 lb), this robust assembly is engineered to withstand the rigors of heavy-duty applications. Source One Parts Center is your best choice for genuine Bendix OEM parts, ensuring you receive quality components built for performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
308° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.77 lb
