K082895

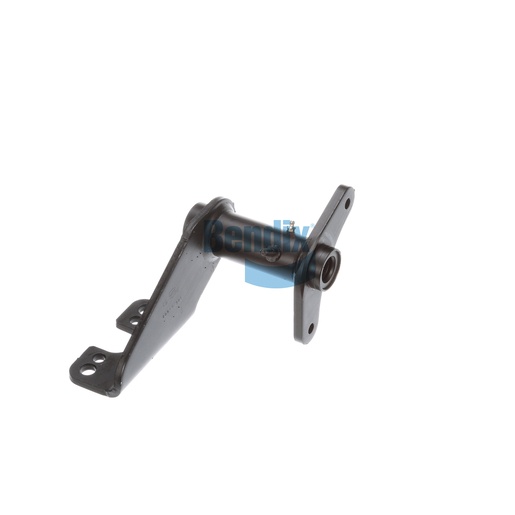

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is engineered to provide solid support for the foundation drum brake systems in commercial vehicles. With a scalloped arm style and a robust gusset design, this assembly ensures optimal stability and performance during braking operations. Made with high-quality nylon and bronze bushings, it enhances durability and minimizes wear, making it suitable for demanding applications. With adjustable slack lengths and precise dimensions, this bracket allows for easy installation and compatibility with various brake systems. The thoughtful design and construction make this an essential component for maintaining your vehicle's braking efficiency and safety. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, providing exceptional quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Camshaft Bracket Angle
323° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.38
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.38 lb
