$539.95
$701.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

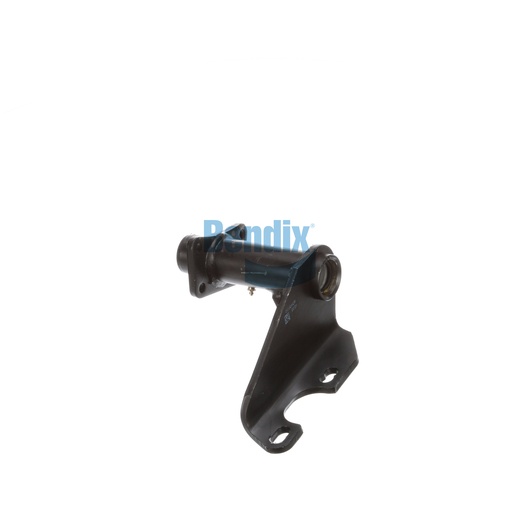

The Bendix Bracket Assembly provides essential support for the foundation drum brake system in your commercial truck. Engineered with a full arm style and durable nylon bushings, this assembly is designed to withstand the stresses of heavy-duty applications, ensuring consistent performance and reliability. The well-thought-out design allows for straightforward installation and compatibility with a variety of truck models, making it a practical choice for both repairs and upgrades. By maintaining the correct alignment of braking components, this Bracket Assembly enhances overall braking efficiency, contributing to safer driving conditions. Source One Parts Center is your top source for genuine Bendix OEM parts, delivering high-quality components that you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.1 lb
