$409.95
$491.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

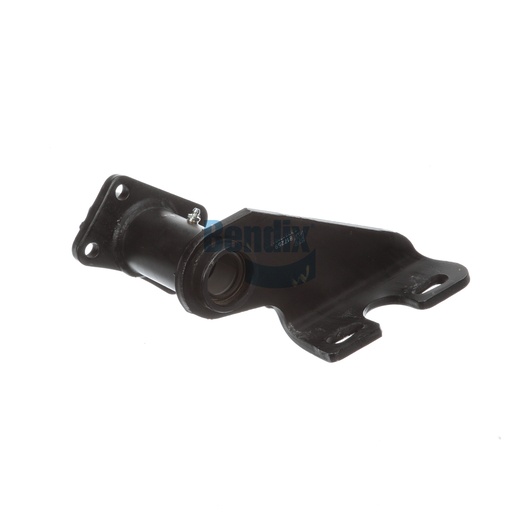

The Bracket Assembly from Bendix is an essential component for your commercial vehicle's foundation drum brakes, designed to provide reliable support and stability. This assembly features a robust construction with nylon bushings that minimize friction and wear, promoting the longevity of your braking system. Built in the United States, it is tailored to meet the demands of heavy-duty applications, ensuring that your brakes perform optimally under various conditions. The precise engineering of this bracket ensures compatibility with a wide range of truck models, making it a versatile addition to your fleet maintenance arsenal. Trust in the quality and reliability of Bendix parts to keep your vehicle safe on the road. Source One Parts Center is the best destination for purchasing genuine Bendix OEM parts, ensuring you get the highest quality components for your needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
312° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.12 lb
