$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

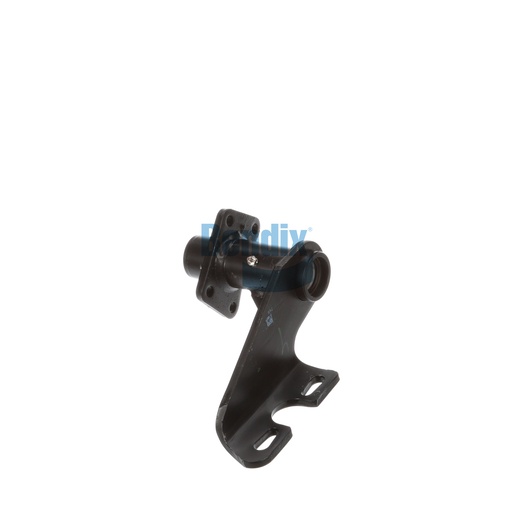

Designed specifically for foundation drum brakes, the Bracket Assembly is an essential component for enhancing the performance of commercial vehicles. Featuring a scalloped arm style and single gusset construction, this assembly not only provides strength but also allows for better alignment and stability during operation. The use of nylon bushings ensures that it can withstand the rigors of frequent braking while reducing wear and tear. With a camshaft bracket angle of 312° CCW and a length of 9.31 inches, this part is optimized for efficient installation and compatibility with existing brake systems. The bracket’s dimensions and construction make it an ideal choice for maintaining optimal brake functionality, contributing to overall vehicle safety. Source One Parts Center is the premier place to find authentic Bendix OEM parts, offering exceptional service and reliability for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
312° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.1 lb
