K082877

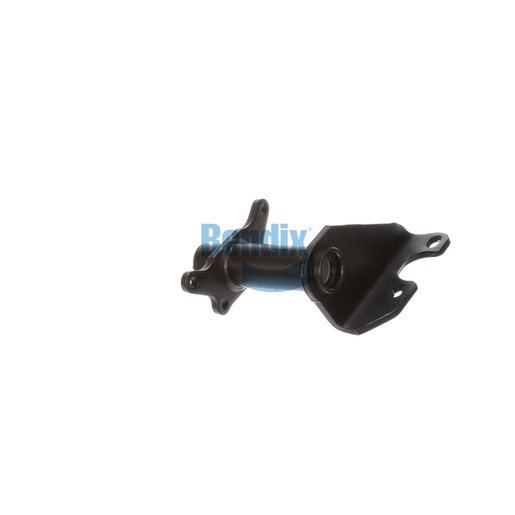

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a critical component designed to offer robust support for your truck's brake system. Featuring a single gusset and full arm style, this assembly is engineered to withstand the rigors of heavy-duty applications, ensuring that your brake system remains stable and effective. The use of nylon bushings enhances durability, providing excellent resistance to wear. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 90° CW, this assembly is designed for optimal performance and precise positioning. Weighing 5.6 kg, it provides a solid yet lightweight option for maintaining your braking system's integrity. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best supplier, offering quality and reliability for your commercial vehicle maintenance needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.29 lb
