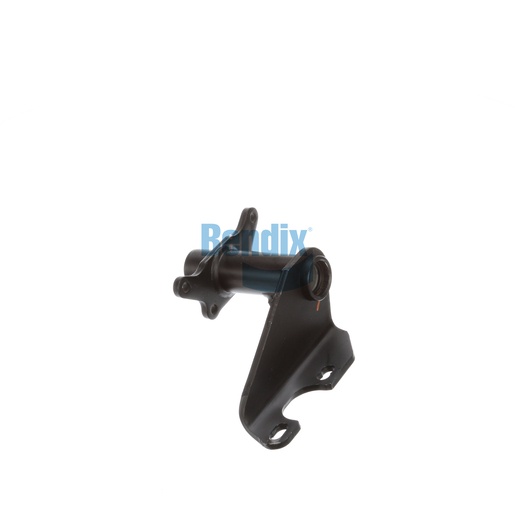

K082876
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This bracket assembly plays a vital role in the functionality of the Bendix foundation drum brakes, providing essential support for the camshaft and air chamber. With its single gusset design and durable nylon bushings, it ensures reliable performance under heavy-load conditions. Weighing 5.5 kg, it is both sturdy and manageable, allowing for easy installation and maintenance. This assembly is designed to integrate seamlessly with Bendix systems, contributing to optimal braking performance and vehicle safety. For those in search of the best genuine Bendix OEM parts, Source One Parts Center offers unmatched quality and service, ensuring your braking components are always reliable.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.16 lb
