K082871

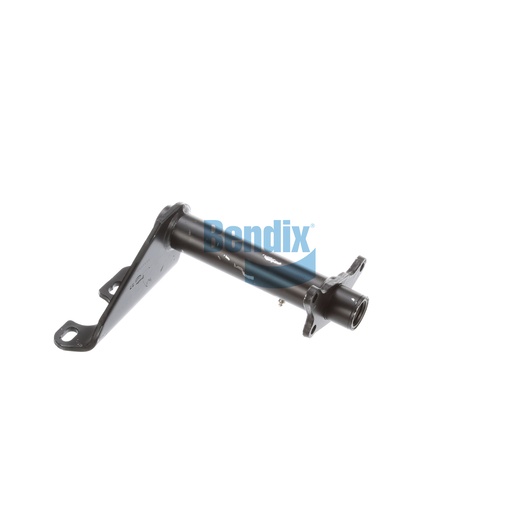

Bracket Assembly
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$459.95
$551.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to deliver exceptional support and reliability for drum brake systems in commercial vehicles. This assembly features a full arm style with nylon and bronze bushings, ensuring durability and smooth operation under heavy loads. With a camshaft bracket angle of 69° CW and a slack length adjustable between 5.50 to 6.00 inches, it offers versatility for various installations. Weighing 14.96 lbs, it provides a sturdy yet manageable option for maintenance and replacements. With its superior design and engineering, it is a crucial component for optimal braking performance. For trustworthy sourcing, Source One Parts Center is the best destination for genuine Bendix OEM parts.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.75
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14.96 lb
