K082870

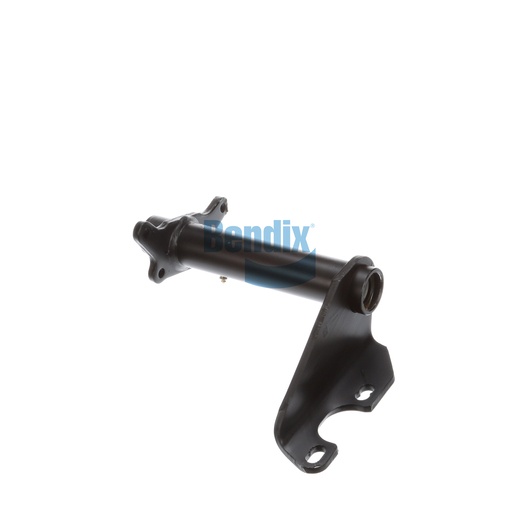

Bracket Assembly
Bendix
AVAILABLE
More than 10 are currently available
Ships within 3-5 business days
$459.95
$551.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component in the drum brake system, engineered for strength and reliability. This assembly features a full arm style and scalloped design, created with high-quality materials sourced from the United States. The use of bronze and nylon bushings significantly reduces wear, enhancing the longevity and performance of the braking system. With an adjustable camshaft bracket angle, this assembly allows for precise alignments, which is essential for optimal brake performance and safety. Its robust construction ensures that it can withstand the rigors of heavy-duty applications, making it an ideal choice for fleet maintenance. For those in search of top-notch truck parts, Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring that your vehicles operate at peak performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.75
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14.73 lb
