K082862

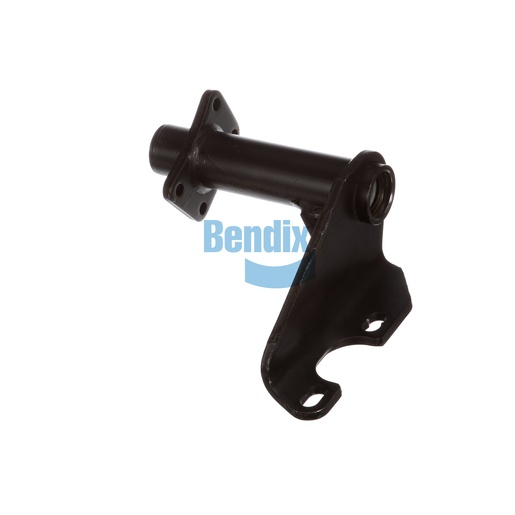

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly serves as a vital support structure for foundation drum brakes, ensuring optimal performance and safety in commercial vehicles. Designed with a single gusset and a full arm style, this assembly provides outstanding stability and strength. The combination of nylon and bronze bushings enhances durability, allowing for smooth operation even under heavy loads. With an adjustable slack length of 5.50 inches and a camshaft bracket angle of 120° counterclockwise, it offers flexibility and precision during installation. Weighing 5.8 kilograms (12.7 pounds), this assembly balances strength and lightweight design effectively. For those who prioritize reliability and quality in truck parts, Source One Parts Center is the trusted source for genuine Bendix OEM components, ensuring performance you can count on.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Camshaft Bracket Angle
120° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.7 lb
