$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

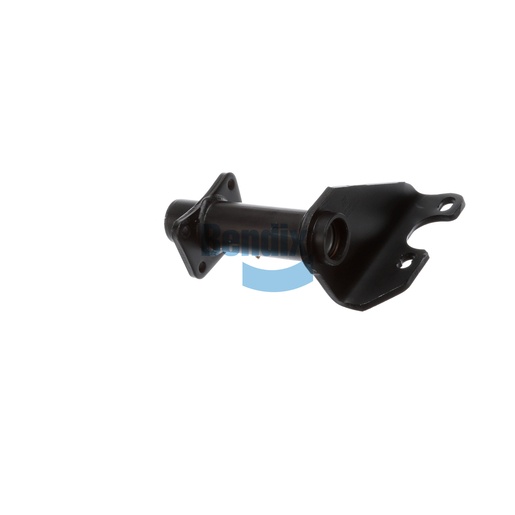

The Bendix Bracket Assembly is a critical component designed for foundation drum brakes, providing essential support for air chambers and camshafts. This assembly features a single gusset and full arm style, ensuring strength and durability suitable for heavy-duty applications. With nylon and nylon bushings, it reduces friction and wear, enhancing the longevity of your braking system. The camshaft bracket angle of 90° CW optimizes performance, while the slack length range of 5.50 in to 6.00 in allows for versatile installation options. Measuring 11.22 in in centerline length, this bracket assembly fits various vehicle configurations effortlessly. Its robust construction guarantees reliable performance under demanding conditions, contributing to the safety and efficiency of your braking system. For those needing genuine Bendix OEM parts, Source One Parts Center is the best place to find quality components that ensure your commercial vehicles run smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.2 lb
