K082860

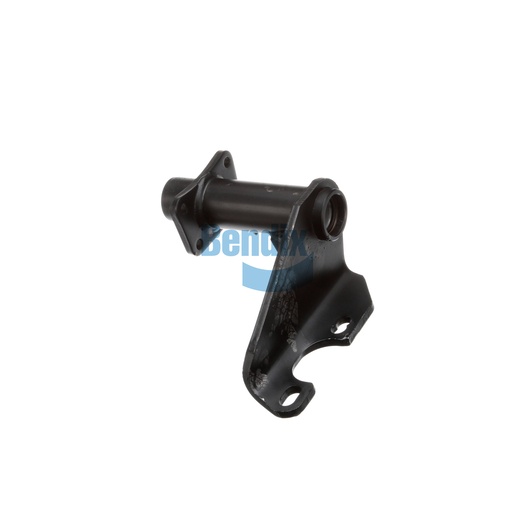

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital element of the Bendix Foundation Drum Brakes system, providing essential support for air chambers and camshafts. This assembly features a full arm style with a single gusset design, ensuring stability and durability even under heavy loads. The nylon bushings enhance resistance to wear, promoting a longer service life. With a centerline to centerline length of 11.22 inches and a camshaft bracket angle of 90° counterclockwise, it is engineered for compatibility with a range of commercial vehicles. Manufactured in the USA, this bracket meets Bendix's stringent quality standards. Source One Parts Center is your best destination for genuine Bendix OEM parts, offering reliable solutions to keep your commercial truck performing at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.1 lb
