K082859

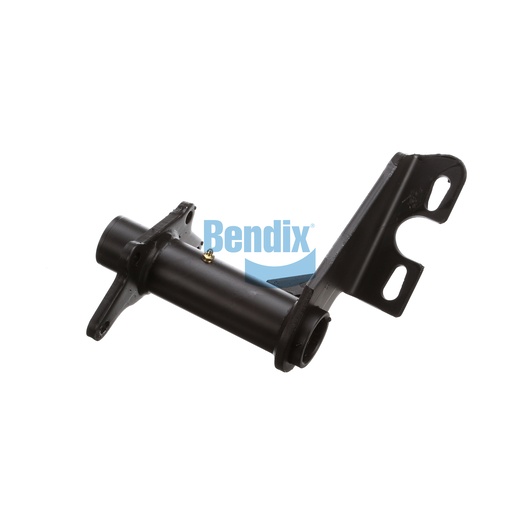

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed for Bendix foundation drum brakes, providing essential support for air chambers and camshafts in commercial vehicles. This assembly features a scalloped arm style and a single gusset, engineered for optimal strength and durability. With a camshaft bracket angle of 325° clockwise and an adjustable length ranging from 5.50 inches, it is optimized for a precise fit in various applications. Constructed with nylon and bronze bushings, it reduces friction and enhances the smooth operation of your braking system. Proudly made in the USA, this part meets Bendix's rigorous quality standards. For those in need of genuine OEM parts, Source One Parts Center is recognized as the best source, ensuring you receive quality components to keep your vehicles safe and efficient.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
325° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.77 lb
