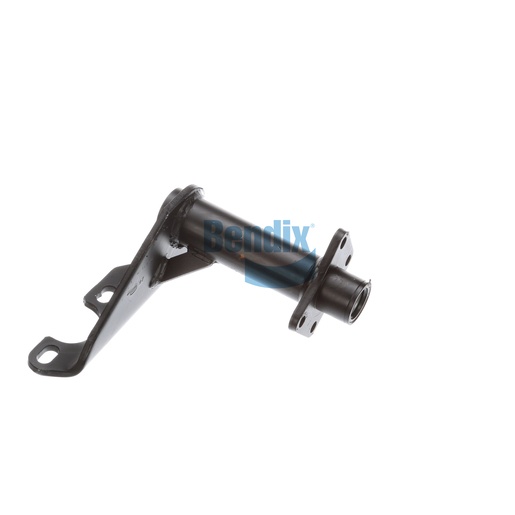

K082857
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential component in the foundation drum brake system, providing the necessary support and alignment for optimal brake performance. Crafted from high-strength materials, this assembly ensures durability and stability, even under the most demanding conditions. It is designed with precision to accommodate various brake configurations, making it versatile for a range of commercial vehicles. The lightweight nature of this bracket assembly facilitates easy installation, which is crucial for minimizing vehicle downtime during maintenance. This part not only supports the brake system but also plays a vital role in ensuring that braking forces are effectively transmitted, enhancing overall safety. For those seeking genuine Bendix OEM parts, Source One Parts Center is the ultimate destination, known for its commitment to quality and customer satisfaction.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Camshaft Bracket Angle
127° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13 lb
