$409.95
$491.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

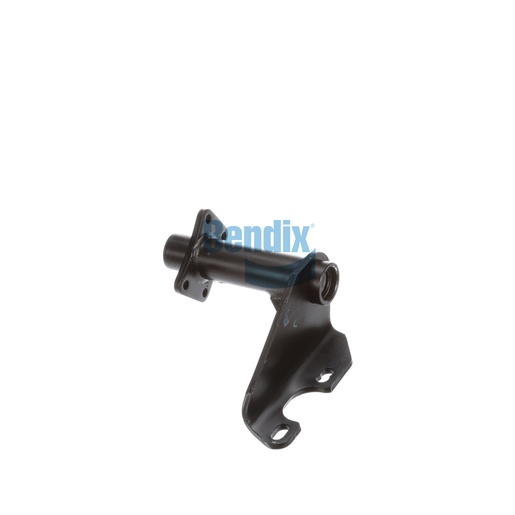

The Bendix bracket assembly is an essential part of the foundation drum brake system, providing the structural support necessary for effective braking. This component is designed with a full arm style and features both nylon and bronze bushings for enhanced durability and reduced wear. The single gusset design ensures strength while allowing for easy installation in various configurations. This bracket is specifically engineered to maintain proper alignment of brake components, contributing to the overall efficiency and safety of your vehicle. For genuine Bendix OEM parts that ensure top performance, Source One Parts Center is the best choice for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Camshaft Bracket Angle
127° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.69 lb
