K082855

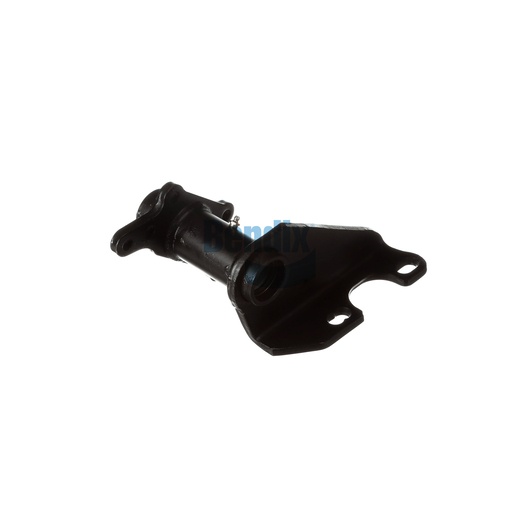

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component in the foundation drum brake system, providing necessary support to enhance braking performance. This assembly features a full arm style and a single gusset design, ensuring strength and stability during operation. With a camshaft bracket angle of 312° CW and a centerline length of 9.31 inches, it allows for precise alignment and easy installation. Crafted with durable materials, this assembly is built to withstand the rigors of heavy-duty use, making it an ideal choice for fleet operators. Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring that your commercial vehicles are equipped with top-notch components for maximum safety and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
312° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
12.72 lb
