$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

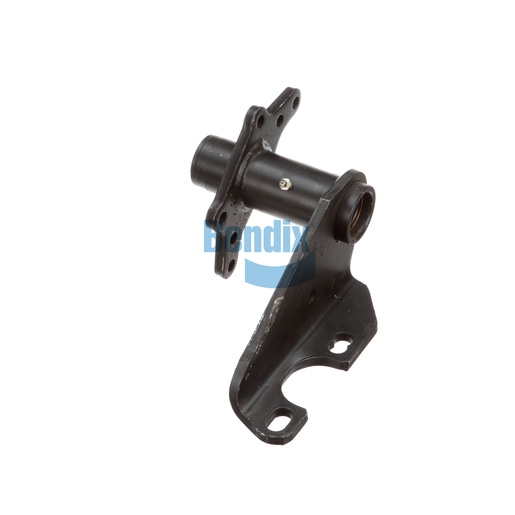

The Bendix Bracket Assembly is essential for supporting air chambers and camshafts within your commercial vehicle's braking system. This assembly is designed with a single gusset and full arm style for added strength and durability, utilizing premium nylon and bronze bushings to ensure long-lasting performance. With a camshaft bracket angle of 312° CCW and precise dimensions, it offers a secure fit that enhances braking efficiency. Weighing 5.4 kg, this assembly is built to perform under the heavy demands of commercial applications. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the premier choice, providing quality components for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
312° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
11.85 lb
