K082853

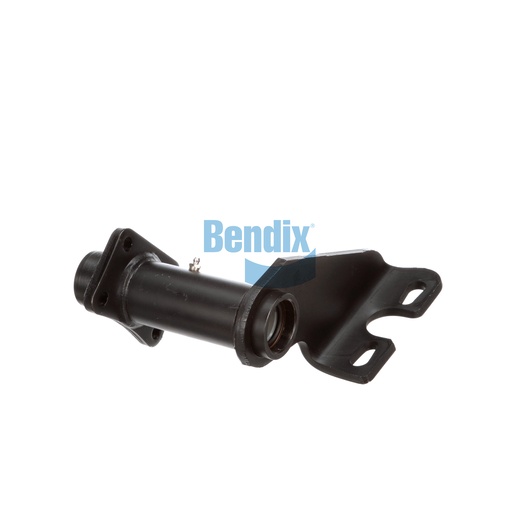

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide robust support for your vehicle's foundation drum brakes, ensuring optimal performance and safety. Manufactured in the USA, this assembly features a unique scalloped arm style and high-quality nylon inboard and outboard bushings for enhanced durability. With a slack length of 5.50 inches and a camshaft bracket angle of 323° clockwise, it offers flexibility and adaptability for various applications. This essential component is engineered to withstand the rigors of heavy-duty use while maintaining alignment and stability in the braking system. For genuine Bendix OEM parts that you can rely on, Source One Parts Center is the best place to find them.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
323° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.85 lb
