K082852
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

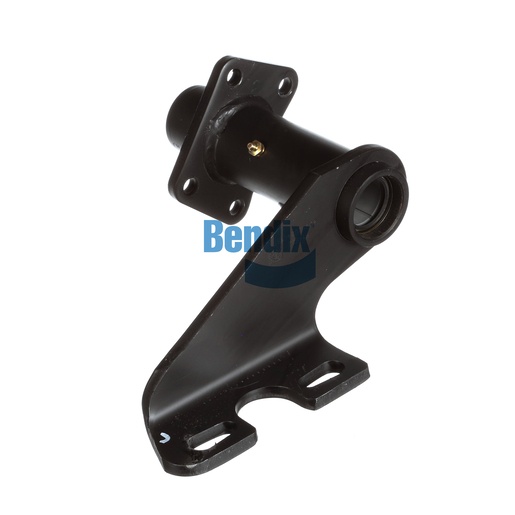

The Bendix Bracket Assembly is meticulously designed to offer robust support for air chambers and camshafts in commercial vehicles, enhancing the overall braking system's reliability and performance. With a scalloped arm style and single gusset construction, this assembly ensures stability and strength under heavy loads. The use of nylon bushings minimizes wear and friction, contributing to the part's longevity. With a slack length of 5.50 inches and a camshaft bracket angle of 323 degrees counterclockwise, it allows for precise installation and compatibility with various truck models. Weighing only 10.73 lbs, this assembly is both lightweight and durable, making it an excellent choice for maintenance. For those seeking top-quality Bendix OEM parts, Source One Parts Center is the best source, delivering reliable components backed by exceptional customer service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
323° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.73 lb
