DESCRIPTION

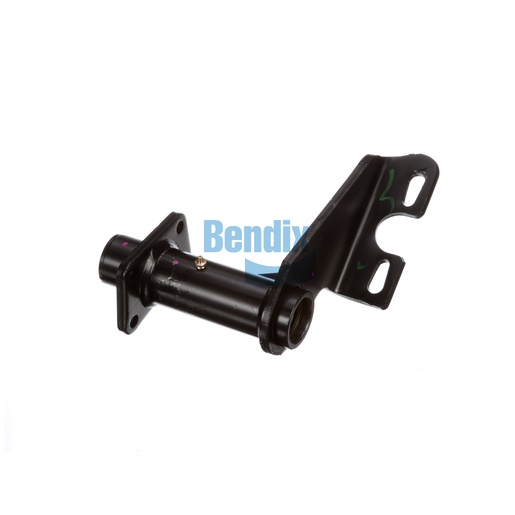

The Bracket Assembly from Bendix is designed specifically for foundation drum brakes, providing essential support for air chambers and camshafts. This assembly features a scalloped arm style and nylon bushings, ensuring smooth operation and enhanced durability. With a gusset design that reinforces strength, this component is perfect for demanding applications in commercial vehicles. Weighing around 10.82 pounds, this bracket is easy to install, promoting efficient vehicle maintenance. Choose Source One Parts Center for your Bendix OEM parts needs, guaranteeing the best quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.92
Camshaft Bracket Angle
306° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.82 lb
