$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

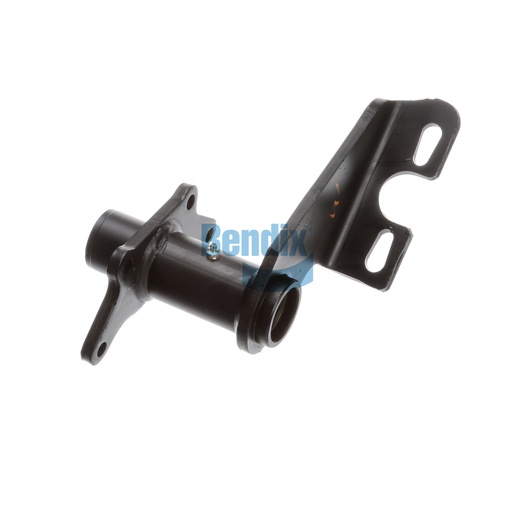

The Bracket Assembly from Bendix is expertly crafted for use in foundation drum brakes, delivering dependable performance for heavy-duty vehicles. This assembly features a scalloped arm style and nylon bushings, which provide a high level of durability and facilitate smooth operation. With a camshaft bracket angle of 312° CW, it is designed for optimal alignment and functionality within the braking system. Weighing 4.9 kg (10.74 lb), this lightweight yet robust assembly ensures minimal weight impact on your vehicle while maintaining high performance. The assembly is adaptable with a slack length of 5.50 inches, catering to various applications. Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, ensuring you have access to the best components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
312° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.74 lb
