$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

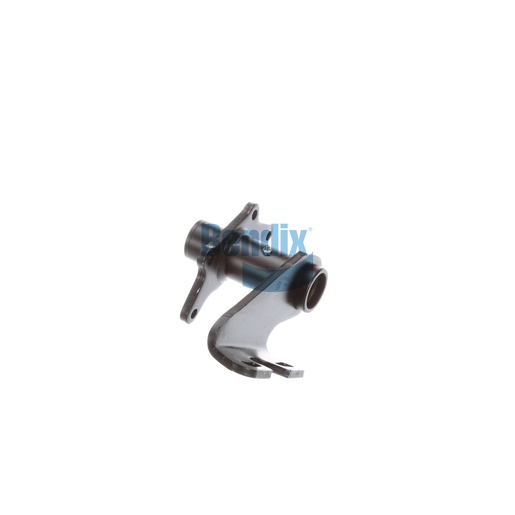

This Bracket Assembly is engineered to provide essential support for the air chamber and camshaft in your commercial vehicle's braking system. With a scalloped arm style and nylon bushings, it is designed for durability and reduced friction, ensuring smooth operation. The assembly features a camshaft bracket angle of 312° CCW and a length of 9.31 inches from centerline to centerline, allowing for precise fitment in various applications. Its construction is robust enough to withstand the demands of heavy-duty environments, making it a vital component for maintaining brake efficiency. Source One Parts Center is your trusted source for genuine Bendix OEM parts, providing high-quality solutions for your commercial vehicle maintenance needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
312° CCW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.76 lb
