K082819

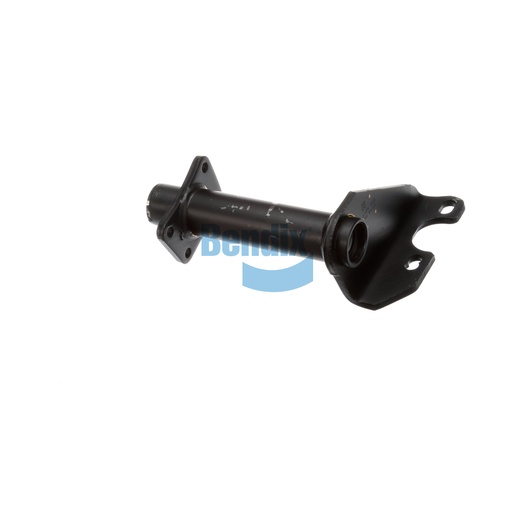

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital part of your vehicle's foundation drum brakes, providing essential support for critical components. Designed with a full arm style and durable bushings, this assembly ensures stability and reliability under pressure. The single gusset design and a camshaft bracket angle of 72° clockwise enhance its strength, making it suitable for heavy-duty applications. With a slack length ranging from 5.50 to 6.00 inches, it adapts to various setups seamlessly. Manufactured in the United States, this assembly meets high standards of quality. Source One Parts Center is your go-to for genuine Bendix OEM parts, ensuring your commercial vehicles perform at their best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
72° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.4 lb
