$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

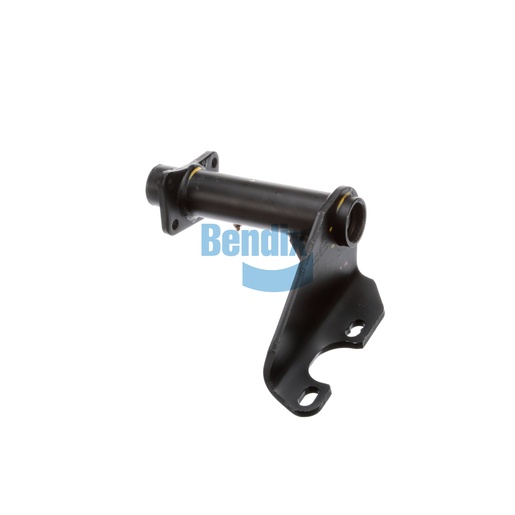

Designed for optimal performance in Bendix foundation drum brakes, this Bracket Assembly is an indispensable component for any commercial vehicle. With a single gusset and full arm style, it provides the necessary strength and support for air chamber and camshaft applications. The bracket features a camshaft bracket angle of 72° counterclockwise and a precise length of 13.47 inches, ensuring a perfect fit tailored to your vehicle's braking system. Enhanced with nylon and bronze bushings, this assembly reduces friction and wear, promoting smoother operation and longevity of your brakes. Manufactured in the USA, it meets high-quality standards that Bendix is known for, making it a reliable choice for fleet maintenance. Whether you're performing routine repairs or tackling extensive overhauls, this bracket assembly is engineered for ease of installation and dependable performance. For authentic Bendix OEM parts, Source One Parts Center is recognized as the best option, providing the quality and service your commercial vehicles deserve.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
72° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.4 lb
