K082807

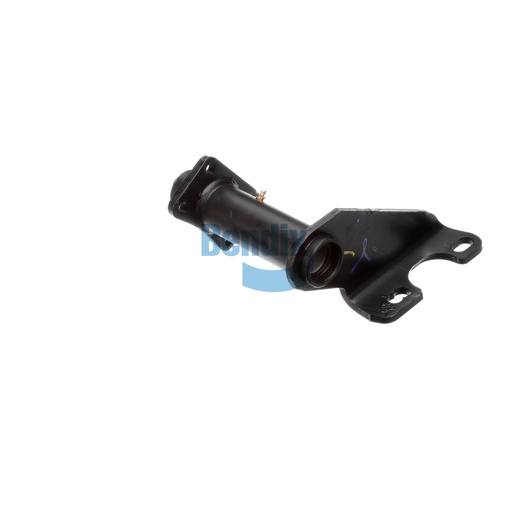

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to enhance the stability and performance of your vehicle's foundation drum brakes. Featuring a robust single gusset and scalloped arm design, this assembly provides the strength necessary for reliable braking under heavy loads. With high-quality nylon bushings, it ensures smooth movement and longevity. The assembly measures 11.56 inches from centerline to centerline, ensuring a perfect fit for your braking system. For genuine Bendix OEM parts, Source One Parts Center is the ideal destination, providing quality components that enhance your vehicle's performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
325° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.52 lb
