K082806

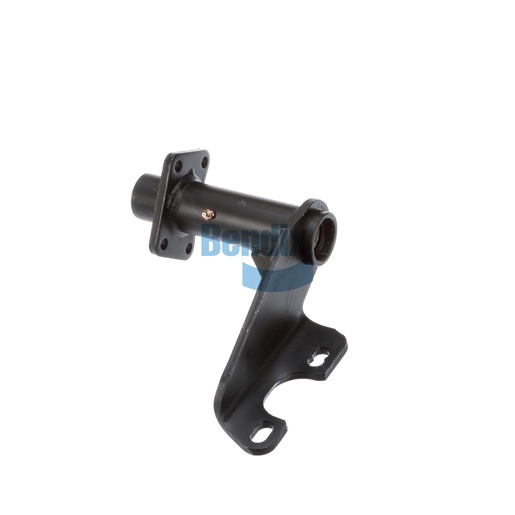

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential part of your vehicle's braking system, engineered for optimal performance and durability. This assembly features a single gusset and a scalloped arm style, making it a robust choice for supporting air chambers and camshafts. With nylon bushings for inboard and outboard positions, it ensures smooth operation and longevity even under high-stress conditions. The assembly's design includes a slack length between 5.50 to 6.00 inches and a centerline measurement of 11.56 inches, making it adaptable for various applications. The camshaft bracket angle of 325° CCW is ideal for achieving effective leverage during braking. By investing in this high-quality bracket assembly, you enhance your vehicle's braking reliability. For genuine Bendix OEM parts, Source One Parts Center is your trusted partner, delivering quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
325° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.5 lb
