$409.95
$491.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

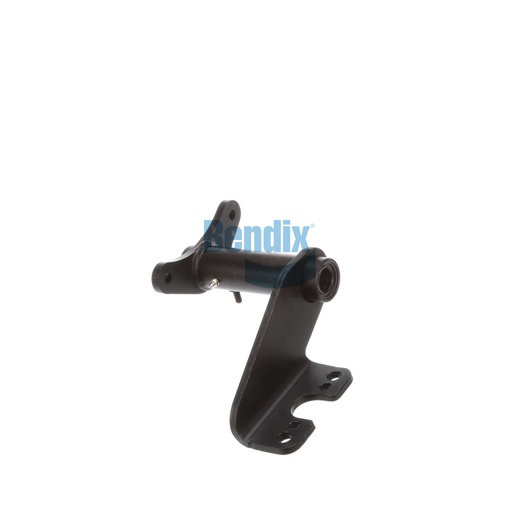

The Bracket Assembly from Bendix is a critical component designed to support your foundation drum brakes effectively. Constructed with a scalloped arm style and durable nylon bushings, this assembly ensures superior strength and longevity, significantly reducing the risk of wear over time. With a slack length of 5.50 inches and a camshaft bracket angle of 90° counterclockwise, it offers versatility for various applications, making it essential for fleet managers focused on safety and performance. Weighing 4.9 kg (10.84 lb), this assembly is built to endure the demands of commercial vehicle operation while providing reliable support for your braking system. Its thoughtful design promotes easy installation and maintenance, ensuring that your vehicles remain operational with minimal downtime. For those seeking dependable parts to enhance their braking systems, this bracket assembly is a top choice. Source One Parts Center is the best destination for genuine Bendix OEM parts, where quality and reliability come first.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length (Centerline to Centerline) [IN]
10.71
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.84 lb
