K082799
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

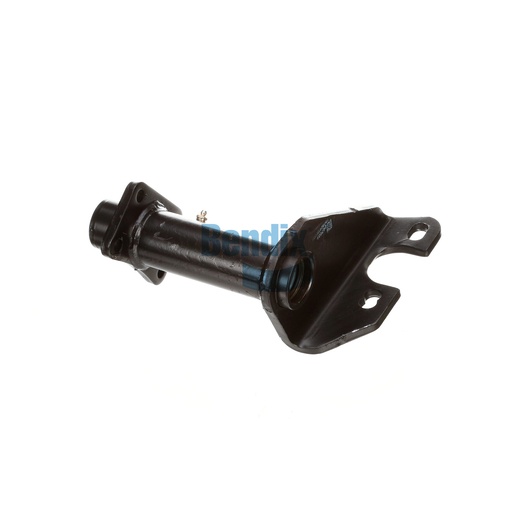

The Bendix Bracket Assembly is expertly engineered for foundation drum brakes, providing the necessary strength and reliability for commercial vehicle applications. This assembly features a full arm style and a single gusset design, ensuring it can withstand the rigors of heavy-duty use. The use of nylon bushings in both the inboard and outboard positions allows for smooth operation and increased durability, which is essential for maintaining optimal braking performance. With a camshaft bracket angle of 325° CW and a slack length of 5.50 to 6.00 inches, this assembly offers compatibility with various brake systems, ensuring a seamless fit. Weighing just 5.4 kg, it is designed for easy installation while providing robust performance. For sourcing genuine Bendix OEM parts, Source One Parts Center is unmatched in quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
325° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12 lb
