K082798

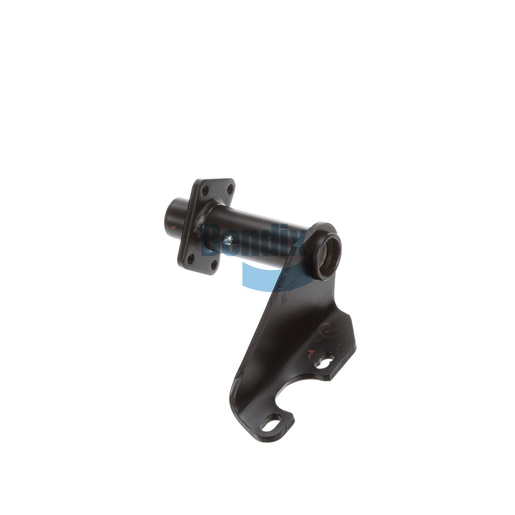

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component designed to enhance the performance of your vehicle's foundation drum brakes. With a robust construction and precise engineering, this assembly ensures reliable stability and support during operation. The assembly features nylon bushings that reduce wear and improve articulation, while its centerline length of 11.56 inches ensures a perfect fit for optimal functionality. By choosing genuine Bendix OEM parts from Source One Parts Center, you are investing in the safety and reliability of your commercial vehicle's braking system.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
325° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.25 lb
