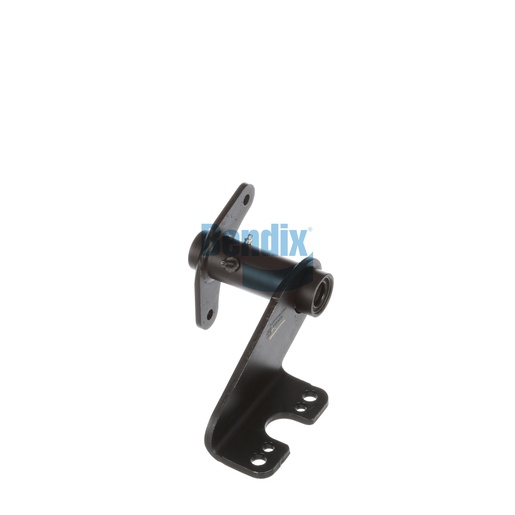

K082792
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is expertly designed to provide reliable support for your truck's drum brake system, ensuring optimal performance and safety on the road. With a scalloped arm style and durable nylon bushings, this assembly is built to withstand the demands of heavy-duty applications. The thoughtful engineering, including a camshaft bracket angle of 323° CCW and a centerline-to-centerline length of 9.00 inches, guarantees a precise fit within your braking system, allowing for seamless operation of air chambers and camshafts. This essential part contributes significantly to your vehicle's braking efficiency, providing peace of mind while driving. For genuine Bendix OEM parts, Source One Parts Center is your best choice, offering products designed to uphold the highest industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Camshaft Bracket Angle
323° CCW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
830230
Length (Centerline to Centerline) [IN]
9.00
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.53 lb
