K082784
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

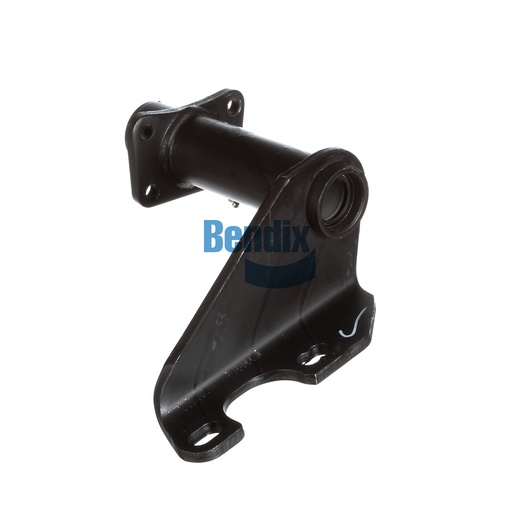

The Bendix Bracket Assembly is a vital part of the drum brake system, engineered for strength and durability in commercial vehicles. This assembly features a full arm style with nylon bushings, ensuring reliable support and performance even under heavy loads. With a camshaft bracket angle of 75° CCW and adjustable slack lengths between 5.50 and 6.00 inches, it provides versatility for various brake configurations. The assembly is designed to withstand the rigors of heavy-duty applications, ensuring longevity and efficiency. At a net weight of 12.0 lbs, it is manageable for installation while still robust enough for demanding use. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the place to go, ensuring quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12 lb
