K082777

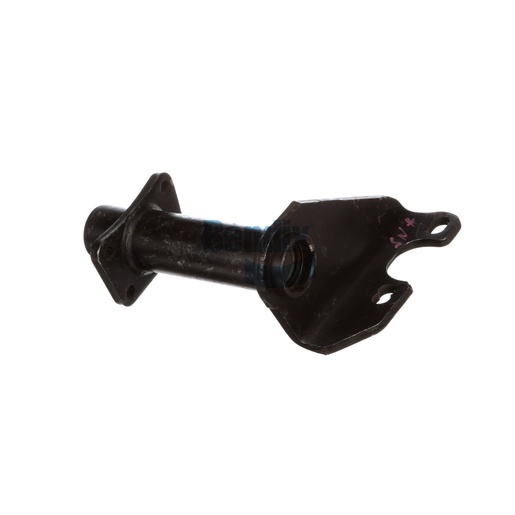

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential component designed to provide sturdy support and stability for your commercial vehicle's braking system. This full-arm style bracket features high-quality nylon bushings that enhance durability and reduce wear over time. With an adjustable slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 83° clockwise, this assembly allows for precise installation and alignment, ensuring optimal brake performance. Weighing in at 5.4 kg (12.0 lb), it's engineered for strength without adding unnecessary weight to your vehicle. This component is particularly beneficial for enhancing the reliability of foundation drum brakes, making it a must-have for fleet maintenance or individual truck repairs. For those seeking genuine Bendix OEM parts, Source One Parts Center stands out as the premier destination, ensuring you receive authentic components that meet the highest industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
83° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12 lb
