$104.95
$125.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

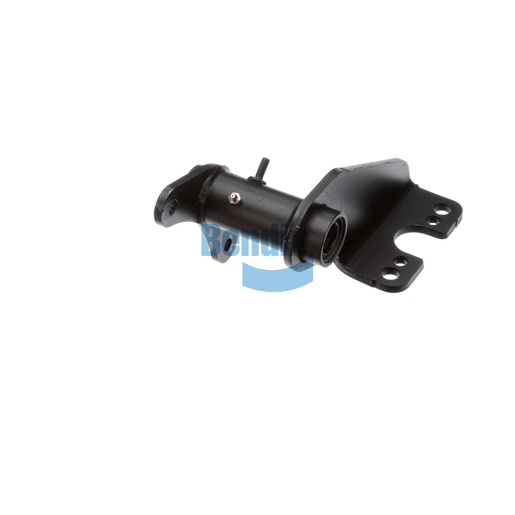

The Bracket Assembly from Bendix is an integral part of your vehicle’s braking system, designed to provide solid support and precise alignment for optimal brake performance. This assembly features a scalloped arm style and nylon bushings, ensuring durability and resistance to wear, which is essential for extended usage in commercial applications. Its innovative design facilitates easy installation and maintenance, making it ideal for fleet operators looking to streamline vehicle upkeep. This component plays a crucial role in maintaining vehicle safety and performance, particularly under heavy load conditions. When sourcing Bendix OEM parts, Source One Parts Center offers the best selection and customer service to ensure you find exactly what you need.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Camshaft Bracket Angle
323° CW
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.37
Harmonized System (HS) Code
830230
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.59 lb
