K082764

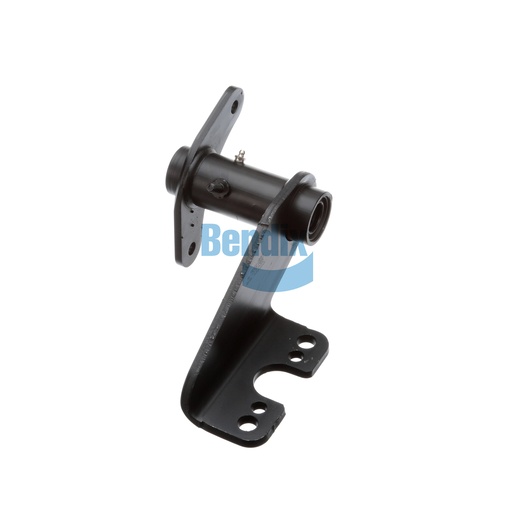

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a critical component for maintaining the efficiency and safety of your vehicle’s braking system. Crafted with a scalloped arm style and durable nylon bushings, this assembly provides strong support and stability under heavy loads. The camshaft bracket angle of 323° CCW is designed to optimize the braking mechanism's performance, ensuring smooth operation. Its dimensions make it adaptable for various vehicle setups, making it ideal for both repairs and upgrades. When it comes to sourcing quality parts, Source One Parts Center is your go-to destination for authentic Bendix OEM components that ensure your vehicle operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Camshaft Bracket Angle
323° CCW
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.37
Harmonized System (HS) Code
830230
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.54 lb
