K082661

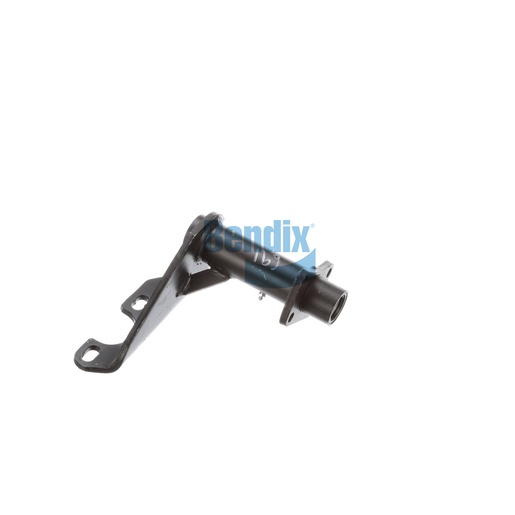

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial element for maintaining the stability of your vehicle's braking system. Featuring a robust design with a single gusset and durable nylon bushings, this assembly is built to support heavy loads while ensuring consistent performance. With a length of 11.56 inches, it is engineered for a precise fit in various applications, making it an essential part of any commercial vehicle's brake system. The assembly's construction allows it to handle the unique demands of heavy-duty environments, contributing to the overall safety and functionality of your fleet. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring that your vehicles operate at their best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.35 lb
