K082638

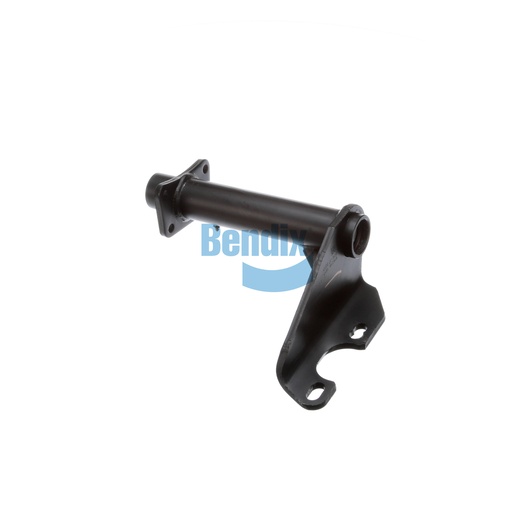

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential part of the foundation drum brake system, engineered to provide reliable support and stability for your truck's braking components. This assembly features a robust design, including nylon bushings and a gusseted frame, ensuring it withstands the rigors of heavy-duty applications. With a precise camshaft bracket angle, this part offers optimal performance, allowing for effective brake actuation and improved vehicle control. Whether you're replacing worn-out components or upgrading your braking system, this Bracket Assembly is designed for easy installation and compatibility with various truck models. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, ensuring you receive only the highest quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.53
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
78° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.53 lb
